Designed for shooters who demand speed and precision, the EP-8 1-8x28 FFP LPVO with the KLGRID reticle allows you to match your shooting style. With a First Focal Plane design, true 1x performance, and extended 8x magnification, this riflescope offers the versatility for rapid close-range engagement and precise mid-range shooting.
ARKEN OPTICS LPVO EP-8 1-8x28 Riflescope User Manual
Tech Note:
- Disclaimer pertaining to "Leveled and Installed" Optics:

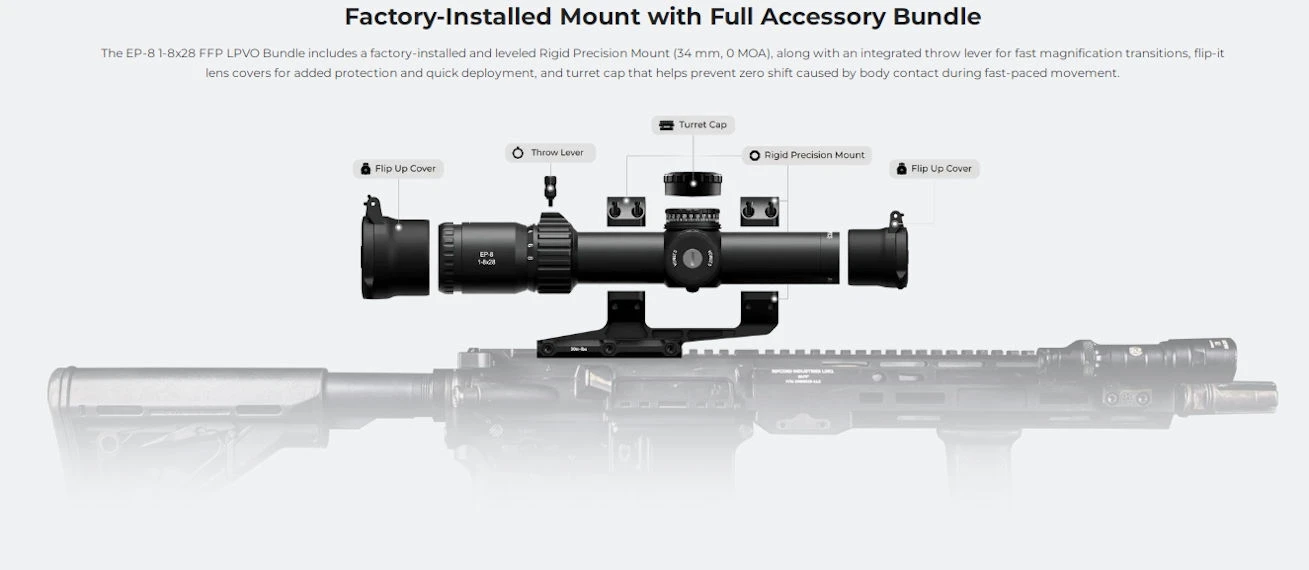

While these optics come from the factory mounted and leveled, final zeroing and leveling to the receiver may still be necessary. The rings may or may not be fully torqued, and no Loctite has been applied to the screws. Leveling can shift during shipping or handling. Users should ensure the scope is properly mounted and leveled before use. Final zeroing is the responsibility of the shooter. Variations in ammunition, environmental conditions, and individual shooting posture may affect point of impact. After your first range session, check that all mounting hardware is secure. - In Canada Daytime scopes do NOT come with a Battery (CR2032).
Premium Japanese XED Glass & Refined Optical Architecture
With Japanese Extremely Extra-Low Dispersion (J-XED) glass and a refined optical system, the scope delivers exceptional edge-to-edge clarity, contrast, and fine detail throughout the 1-8x magnification range.
CTS Available Reticle:

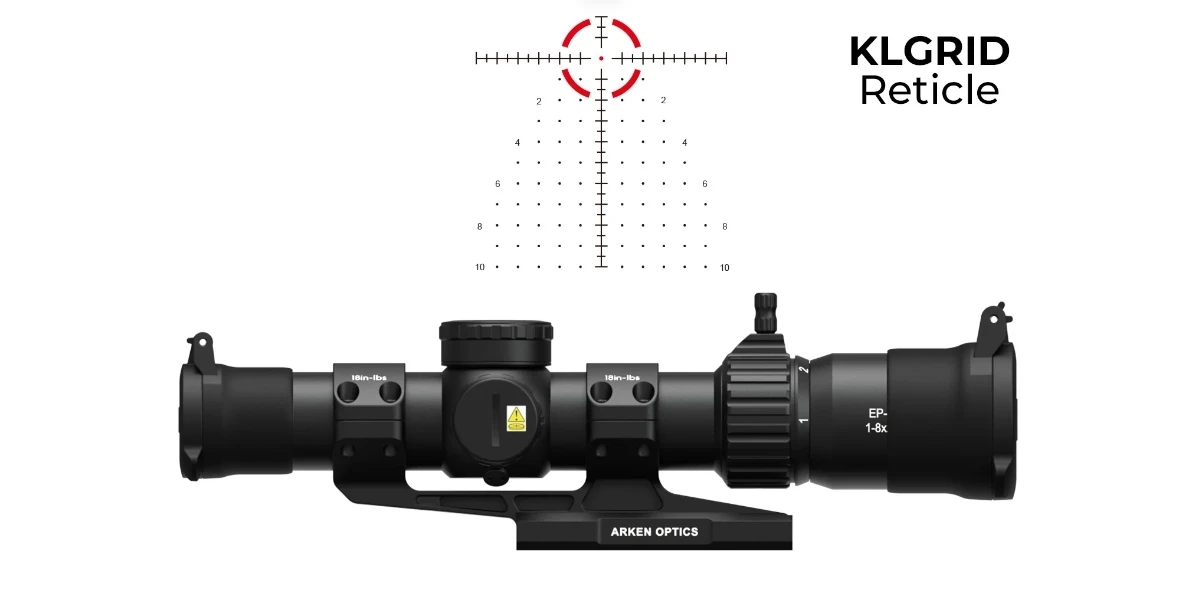

KLGRID | Maximum Hold Precision
A MIL-based Christmas tree reticle designed for precise holds and corrections without dialing, with a simplified layout for faster, more intuitive aiming.
- 0.5 MIL subtensions: Clear reference marks for accurate elevation and wind holds
- 0.12 MIL floating center dot: Fine aiming point that minimizes target obstruction
- Comprehensive holdover grid: Enables precise corrections across varying distances and conditions
Built for 3-Gun competition, tactical carbines, and MIL-based precision shooting across multiple distances.
True 1x Performance with Forgiving Eyebox
34mm Tube for Precision Tracking & Dialing Flexibility
| Product Features: |
- Magnification: 1-8x
- Objective Diameter: 28mm
- Tube Size: 34 mm
- Eye Relief: 3.7 inches
- Field of View: 24.02 at 5 Magnification-4.71 ft at 25 Magnification @100 Yards
- Turret Rotation: Counter Clockwise (CCW)
- Turret Adjustment: 1/10 MIL
- Zero Stop: AZS Zero Stop System
- Zero Reset: Yes
- Elevation Adj. Range: 28 MIL/100 MOA
- Windage Adj. Range: 12 MIL/48 MOA
- Adjustment Per Revolution: 10 MIL/25 MOA
- Parallax: Side Parallax Adjustment 20 Yards - Infinity
- Reticle Position: First Focal Plane

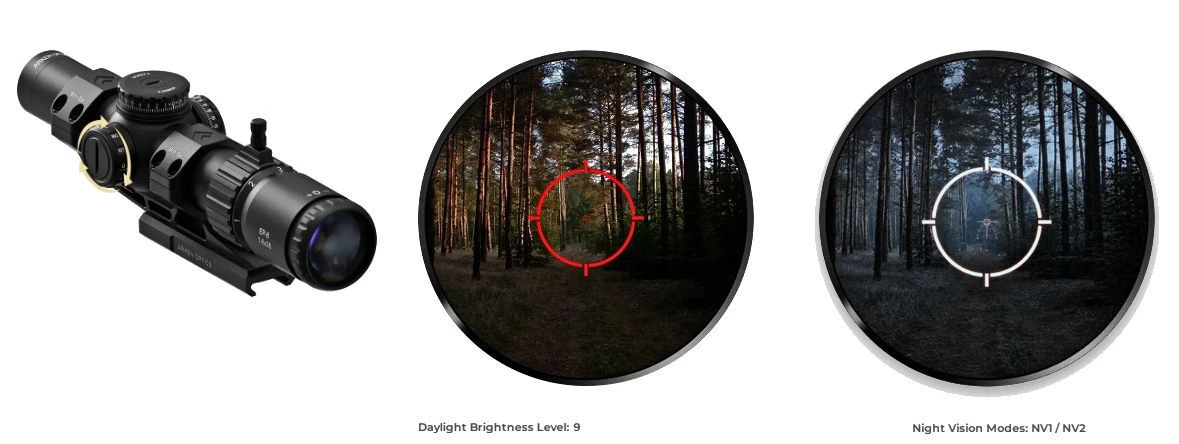

- Illuminated Reticle: Red with 6 Brightness Settings
- Color: Matte Black
- Weight: 596g
| Magnification | 1-8x | Objective | 28mm |
| Eye Relief | 3.7 inches | Field of View | 121.15-14.56 ft @100 Yards |
| Tube Size | 34 mm | Turret Adjustment | .01 MIL |
| Reticle Position | First Focal Plane | Reticle Details | KLGRID-MIL |
| Ocular Lens Diameter | 40 mm | Zero Rest | No |
| Elevation Adjustment Range | 30 MIL | Windage Adjustment | 30 MIL |
| Adjustment Per Revolution | 10 MIL | Parallax setting | 100 Yards |
| Illuminated Reticle | Red | Turret Rotation | Counter Clockwise (CCW) |

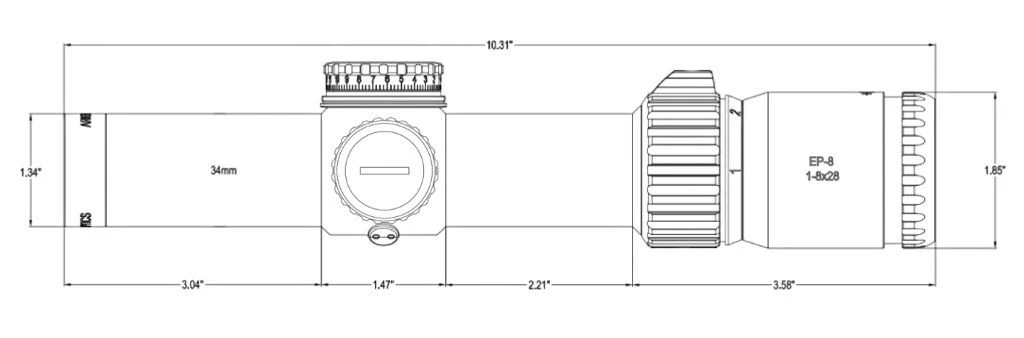

| Length | 10.3 inches | Color | Matte Black |
| Weight | 596g / 21.0 oz | Battery | CR2032 (NOT INCLUDED IN CANADA) |
