Building on the success of Arken's flagship EP Competition and ELR series, the EP-5 GENII 5-25x56 FFP Riflescope delivers upgraded glass, refined mechanics, and enhanced performance for precision-driven shooters at any distance.
EP-5 FLAGSHIP STANDARD
ARKEN OPTICS EP-5 GENII 5-25x56 Riflescope User Manual
Premium Japanese XED Glass & Refined Optical Architecture
With Japanese Extremely Extra-Low Dispersion (J-XED) glass and a refined optical system, the scope delivers exceptional edge-to-edge clarity, contrast, and fine detail throughout the 5-25x magnification range.
CTS Available Reticle:
TOR | Extreme Competition
A dense 16 MIL holdover grid designed for maximum elevation holds without dialing.
- 0.2 MIL subtensions: Higher-density reference spacing for enhanced wind and impact correction
- 0.05–0.08 MIL floating center dot: Optimized for extreme-distance target definition
- Fully illuminated reticle: Improved visibility and aiming precision
Built for PRS/NRL competition and Rimfire precision shooting where extended elevation range and fine aiming control are critical.
Instant Target Acquisition with a More Forgiving Eyebox
Dial with Confidence
Precision-machined tactile turrets deliver repeatable tracking you can trust shot after shot, supported by Torx screws with O-ring sealing for long-term stability.
Arken Zero Stop, Repeatable Return to Zero
The Arken Zero Stop (AZS) system provides a positive stop after multiple full turret rotations, enabling a fast and reliable return to zero.
| Product Features: |
- Magnification: 5-25x
- Objective Diameter: 56mm
- Tube Size: 34 mm
- Eye Relief: 3.5 inches
- Field of View: 24.02 at 5 Magnification-4.71 ft at 25 Magnification @100 Yards
- Turret Rotation: Counter Clockwise (CCW)
- Turret Adjustment: 1/10 MIL
- Zero Stop: AZS Zero Stop System
- Zero Reset: Yes
- Elevation Adj. Range: 28 MIL/100 MOA
- Windage Adj. Range: 12 MIL/48 MOA
- Adjustment Per Revolution: 10 MIL/25 MOA
- Parallax: Side Parallax Adjustment 20 Yards - Infinity
- Reticle Position: First Focal Plane
- Illuminated Reticle: Red with 6 Brightness Settings
- Color: Matte Black
- Weight: 1,170g
| Magnification | 5-25x | Objective | 56mm |
| Eye Relief | 3.5 inches / 88.9mm | Field of View | 24.02-4.71 ft @100 Yards |
| Tube Size | 34 mm | Turret Adjustment | 1/10 MIL |
| Reticle Position | First Focal Plane | Reticle Details | TOR-MIL |
| Zero Stop | AZS Zero Stop System | Zero Rest | Yes |
| Elevation Adjustment Range | 28 MIL/100 MOA | Windage Adjustment | 12 MIL/48 MOA |
| Adjustment Per Revolution | 10 MIL/25 MOA | Parallax | Side Parallax Adjustment 20 Yards - Infinity |
| Illuminated Reticle | Red with 6 Brightness Settings | Turret Rotation | Counter Clockwise (CCW) |

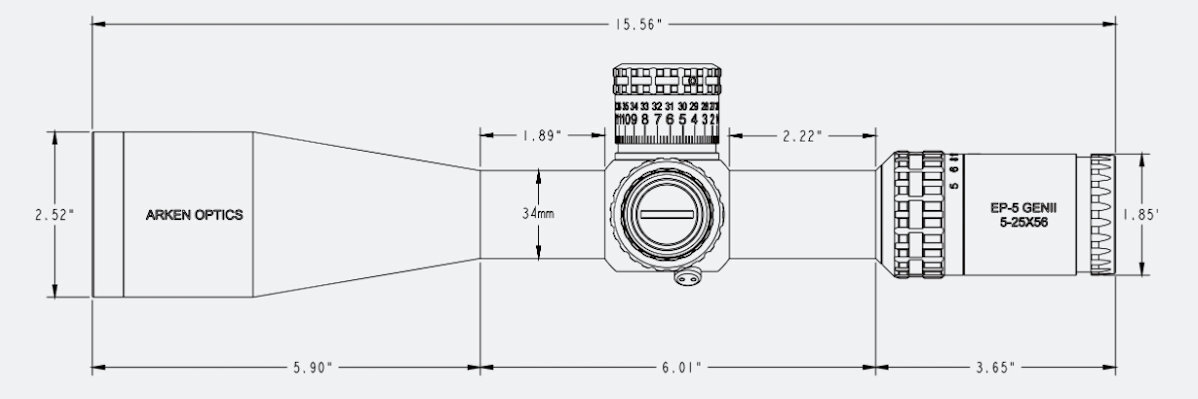

| Length | 15.6 inches / 396mm | Color | Matte Black |
| Weight | 1,170g / 41.2 oz | Battery | CR2032 |
